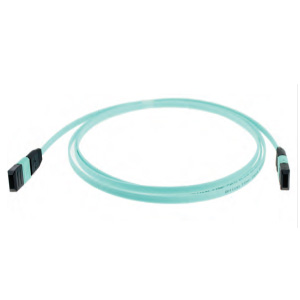

MPO/MTP Patchcord

Auxora's MPO / MTP patchcords are simplex multi-fiber cable using the MPO / MTP connector in fiber counts of 4, 8, 12 or 24. The MPO/MTP patchcords offer Male and Female MPO / MTP connectors on each end and available in 4~24 fibers versions as well as multi-mode (62.5/125, 10G OM2/OM3/ OM4,Bend-insensitive fiber, etc.) and single-mode(G652D, G657A1 etc.) fiber types.

Features Applications Specifications Downloads
  • Low insertion loss
  • High return loss
  • Available in 4/8/12/24 fibers
  • High density fiber management
  • Optical fiber communication systems
  • Local area network (LAN)
  • CATV
Parameters Multi-Mode Single-Mode
Operating wavelength (nm) 850/1300 1310/1550
Fiber type (nm) 50/125 or 62.5/125 G.657
Grade Low Loss Standard Low Loss Standard
IL (dB)   ≤ 0.35 ≤ 0.5 ≤ 0.35 ≤ 0.7
RL (dB) UPC ≥ 20 ≥ 45
APC - ≥ 55
Durability (times) ≥ 200
Operating temperature (℃) -40 ~ 85
