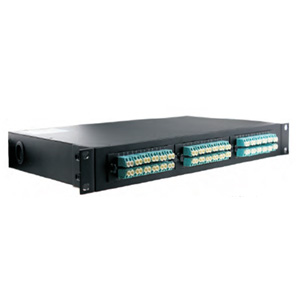

MPO/MTP Cabling

MPO/MTP Rack-mounted Module

Auxora's offers 19” 1U MPO/MTP rack with 3 slots and 4U MPO/MTP Rack with 12 slots for cabling deployment in data center, also we can provide MPO/MTP trunk cables connected to 12 individual MPO/MTP cassettes for pre-terminated solutions.

Features Applications Specifications Downloads

Low insertion loss
Available in 12/24 fibers
Modular system management, easy reconfiguration

Data center infrastructure
High density fiber management
LAN/WAN premises
DACS

Parameters		Multi-Mode		Single-Mode
Operating wavelength (nm)		850/1300		1310/1550
Fiber type (nm)		50/125 or 62.5/125		G.657
Grade		Low Loss	Standard	Low Loss	Standard
IL (dB)		≤ 0.35	≤ 0.5	≤ 0.35	≤ 0.7
RL (dB)	UPC	≥ 20		≥ 45
	APC	-		≥ 55
Durability (times)		≥ 200
Operating temperature (℃)		-40 ~ 85
